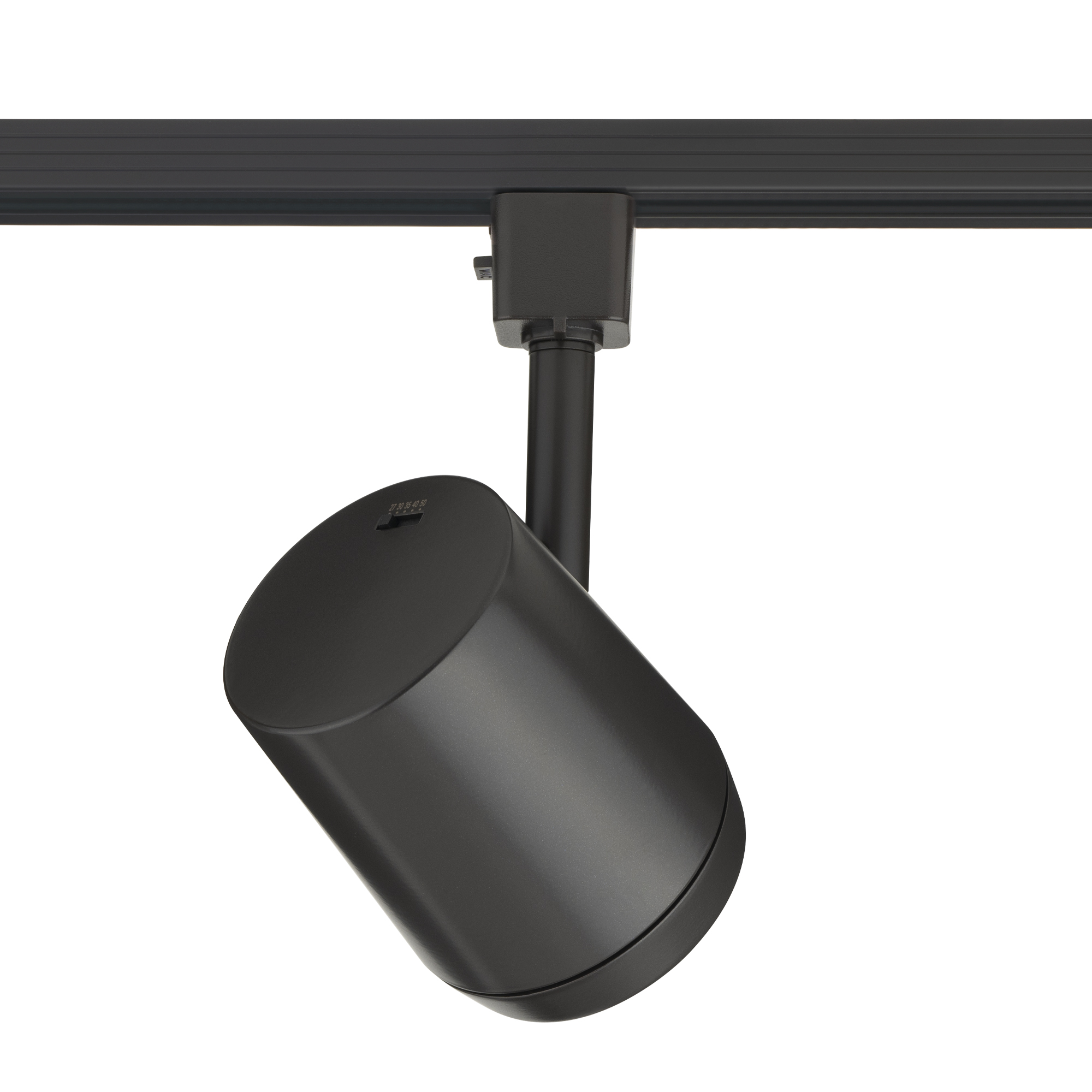

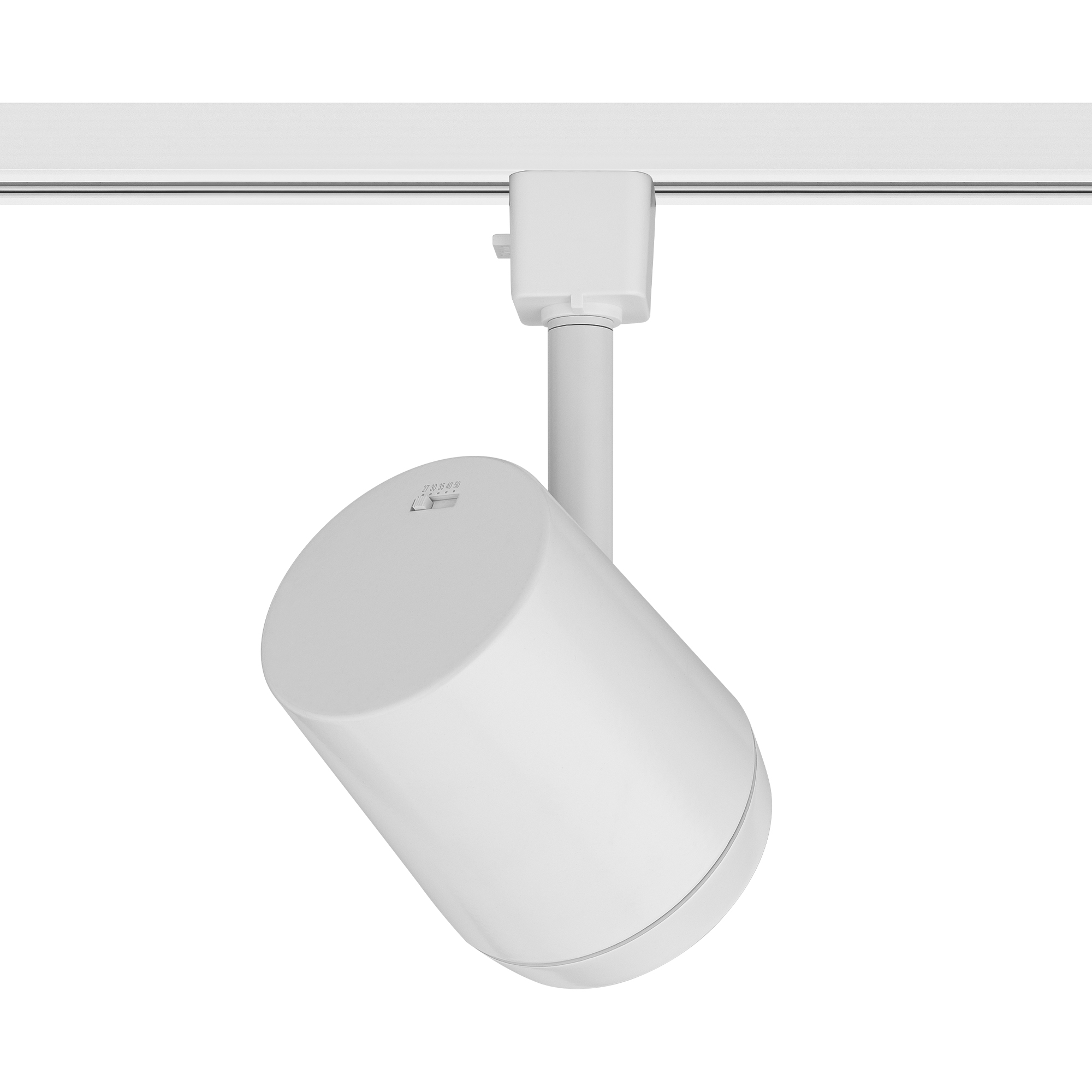

Ocularc 7030 – 5CCT 29W H/J/L Track Luminaire

NEW

Order Number:

system type & voltage	model	color temp & cri	lumens	cbcp	finish
H - 120 VAC	7030	CS - 2700K/3000K/3500K/4000K/5000K - 90	20°: 2255 / 40°: 2095 / 55°: 2065	20°: 9300 / 40°: 2830 / 55°: 1875	BK - Black
H - 120 VAC	7030	CS - 2700K/3000K/3500K/4000K/5000K - 90	20°: 2255 / 40°: 2095 / 55°: 2065	20°: 9300 / 40°: 2830 / 55°: 1875	BN - Brushed Nickel
H - 120 VAC	7030	CS - 2700K/3000K/3500K/4000K/5000K - 90	20°: 2255 / 40°: 2095 / 55°: 2065	20°: 9300 / 40°: 2830 / 55°: 1875	DB - Dark Bronze
H - 120 VAC	7030	CS - 2700K/3000K/3500K/4000K/5000K - 90	20°: 2255 / 40°: 2095 / 55°: 2065	20°: 9300 / 40°: 2830 / 55°: 1875	WT - White
J - 120 VAC	7030	CS - 2700K/3000K/3500K/4000K/5000K - 90	20°: 2255 / 40°: 2095 / 55°: 2065	20°: 9300 / 40°: 2830 / 55°: 1875	BK - Black
J - 120 VAC	7030	CS - 2700K/3000K/3500K/4000K/5000K - 90	20°: 2255 / 40°: 2095 / 55°: 2065	20°: 9300 / 40°: 2830 / 55°: 1875	BN - Brushed Nickel
J - 120 VAC	7030	CS - 2700K/3000K/3500K/4000K/5000K - 90	20°: 2255 / 40°: 2095 / 55°: 2065	20°: 9300 / 40°: 2830 / 55°: 1875	WT - White
L - 120 VAC	7030	CS - 2700K/3000K/3500K/4000K/5000K - 90	20°: 2255 / 40°: 2095 / 55°: 2065	20°: 9300 / 40°: 2830 / 55°: 1875	BK - Black
L - 120 VAC	7030	CS - 2700K/3000K/3500K/4000K/5000K - 90	20°: 2255 / 40°: 2095 / 55°: 2065	20°: 9300 / 40°: 2830 / 55°: 1875	BN - Brushed Nickel
L - 120 VAC	7030	CS - 2700K/3000K/3500K/4000K/5000K - 90	20°: 2255 / 40°: 2095 / 55°: 2065	20°: 9300 / 40°: 2830 / 55°: 1875	WT - White

Delivered Lumens: 2255lm
CBCP: 9300
CCT: 2700K/3000K/3500K/4000K/5000K
CRI: 90
Power: 29W
Input: 120 VAC, 50/60Hz
ELV Dimming: 100-10%
TRIAC Dimming: 100-10%
Rated Life: 50000 Hours
Construction: Die-cast aluminum with baffled front cover for glare control
3 beam angle options included: 55° beam film pre-installed, interchangeable 40° film supplied, remove film for 20° spot beam
Discrete, toolless integrated 5CCT switch: 2700K, 3000K, 3500K, 4000K, 5000K
Integral driver and high output COB LED
Outperforms halogen 100W PAR38
350° horizontal and 90° vertical aiming
Accommodates one lens OR one glare control accessory
Driver concealed within the fixture
